X2AEECNANF-24.000000,TAITIEN广东会,±30ppm晶体,8pF无源广东会,3225无源谐振器,泰艺广东会

频率：24MHz

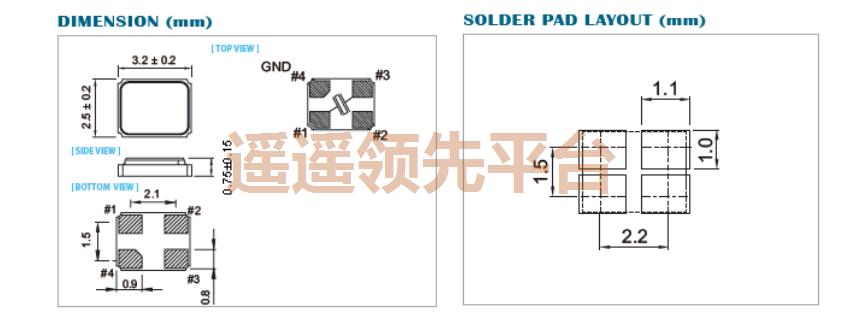

尺寸：3.20mm x 2.50mm

Part Series 型号	X2
Original model 原厂编码	X2AEECNANF-24.000000
Product Category 产品系列	MHz广东会
Manufacturer 品牌	Taitien
Frequency 频率	24MHz
Package Size 包装尺寸	3.20mm x 2.50mm
Load capacitance 负载电容	8pF
frequency tolerance 频率容差	±30ppm

订购热线：13380314981

X2AEECNANF-24.000000,TAITIEN广东会,±30ppm晶体,8pF无源广东会,3225无源谐振器,泰艺广东会详细参数

Part Series 型号	X2
Original model 原厂编码	X2AEECNANF-24.000000
Product Category 产品系列	MHz Crystal
Manufacturer 品牌	Taitien
Frequency 频率	24MHz
Package Size 包装尺寸	3.20mm x 2.50mm
Load capacitance 负载电容	8pF
frequency tolerance 频率容差	±30ppm
Termination 脚位	4 Pad
Package Height 高度	0.90mm
Package Type 封装类型	4-SMD
Packaging 包装	Tape and Reel
Mounting Style 安装方式	Surface Mount
